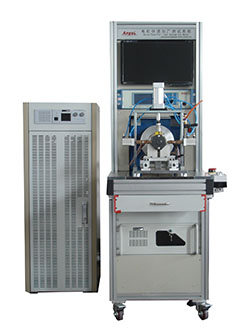

Pulling Motor Test System
|
Customers: Shanghai JUNCH Industries,Jiashan JinLu
|
|
|
Features:
1. Automatically do quick Pass/Fail Test: multi points loading test in 0~30sec: no load, load 1(torque M1), load 2(torque M2),load 3(torque M3) .
2. Low voltage starting.
3. Automatically alarm motor speed, current for unacceptable range.
4. Quick fixing: pneumatic fixture to improve testing speed.
5. Testing step: 2~3 sets/ min.
6. High accuracy: Electric Value: ±0.5% ±1 digit. Torque: ±0.5%(Full scale) ±1digit. Speed: ±0.1 % ±1 digit.
7.High current to 300A,High speed to 8000rpm
8. Motor database: selected by serial number, model, date, etc. Automatically review testing data and curve.
9.Codebar label print(optional)
|
|
|
