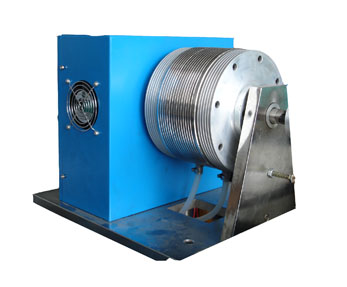

CF Magnetic Powder Dynamometers
|
|
| Features: |
| .No residual torque,low inertia,and high sensitive load. |
| .Torque value per unit volume is 2~3 times as CC dynamometer. |
| .Suitable for the test of low speed& large torque motor, gear motor, window-lift motor, wiper motor, bicycle motor, etc. |
| .Accuracy: ±0.5%(Full scale) ±1digit (if need the high accuracy,please contact us) |
| |
Model |
Max Torque |
Max Speed |
Rated Power(Max) |
| |
(N·m) |
(r/min) |
5 minutes (W) |
Continuous (W) |
CF50K |
5 |
5000 |
250 |
100 |
CF50KS/F |
5 |
5000 |
800 |
400 |
CF100K |
10 |
5000 |
400 |
200 |
CF100KS/F |
10 |
5000 |
1500 |
800 |
CF200K |
20 |
4000 |
800 |
400 |
CF200KS/F |
20 |
4000 |
3000 |
1500 |
CF500K |
50 |
4000 |
1200 |
600 |
CF500KS/F |
50 |
4000 |
4000 |
2000 |
CF1KK |
100 |
3000 |
1200 |
800 |
CF1KKS |
100 |
3000 |
6000 |
3000 |
CF2KK |
200 |
1500 |
1500 |
1000 |
CF2KKS |
200 |
1500 |
8000 |
5000 |
CF50KKS |
5000 |
500 |
55K |
45K |
Note:
·The special cooling system can be added on the dynamometer to increase the running power according the customer’s requirements.
·The customized specification of dynamometers can be made according the customer’s requirements.
·Mark “S” means cold water cooling,the cold water cooling circulation system is needed. Mark “F” means fan or blower cooling, the fan/blower cooling system is needed
|
| |
|
