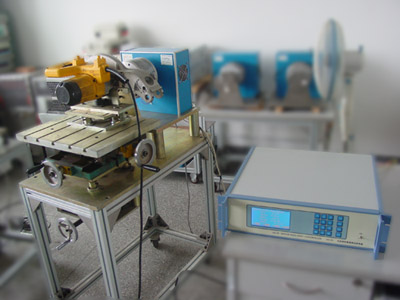

Performance & Temeperature-Rise Test System for Power/Garden Tools
|
|
|
|
|
| |
|
Features:
1.
Multi-point value load (like DS P6000 made by Magtrol Co,USA ). The number of point can be over 10, with loading control of the constant current, torque and constant input power.
2.
Loading control in high precision via 100 points/sec PID feedback control. Accuracy: ±0.5%. Stable time: 1~2 sec.
3.
High speed A/D transfer (8000 times/sec) to test motor’s voltage, current, available power with DSP technology, Digital Filtering technology, and auto-revising technology.
4.
High efficiency, low consumption, long life with PWM loading power supply.
5.
Test of motor characteristic curve M=f(U, I, W, n, P,η, cosΦ) and data printing.
6.
After 30~40mins constant load(set by user), user can do temperature-rise test by AGR4 Resistance Test Equipment, and automatically get the result by corresponding sofware.
7.
System can test most Power tools and Garden tools such as Hand planer, Tile cutter, Angle Grinder, Table drill, Impact drill,hand circular saw,Rechargeable drill and so on.
Customers: Crown Power Tools Manufacture Co.,Ltd, YAT Appliance Co., Ltd, Suzhou Black&Decker Manufacture Co.,Ltd, Shanghai Metabo, Shanghai BV Lab, shanghai TUV Lab.
|
|
